GENERAL INFORMATION:
Overall length: 31’
Registered length: 31’
Gross tonnage: na
Net tonnage: na
Beam: 11’
Depth: 5’
Draft: 17”
Year built: 2007
Built by: Copper River Boat Works
Where built: Cordova, AK
Power: twin gasoline water jet
Service: commercial fishing
Cruising speed: 25 knots @ 3200 RPM (according to owner)
Fuel consumption: 20 GPH at cruise (according to owner)
Stability test: none
Crew: one
GENERAL DESCRIPTION:

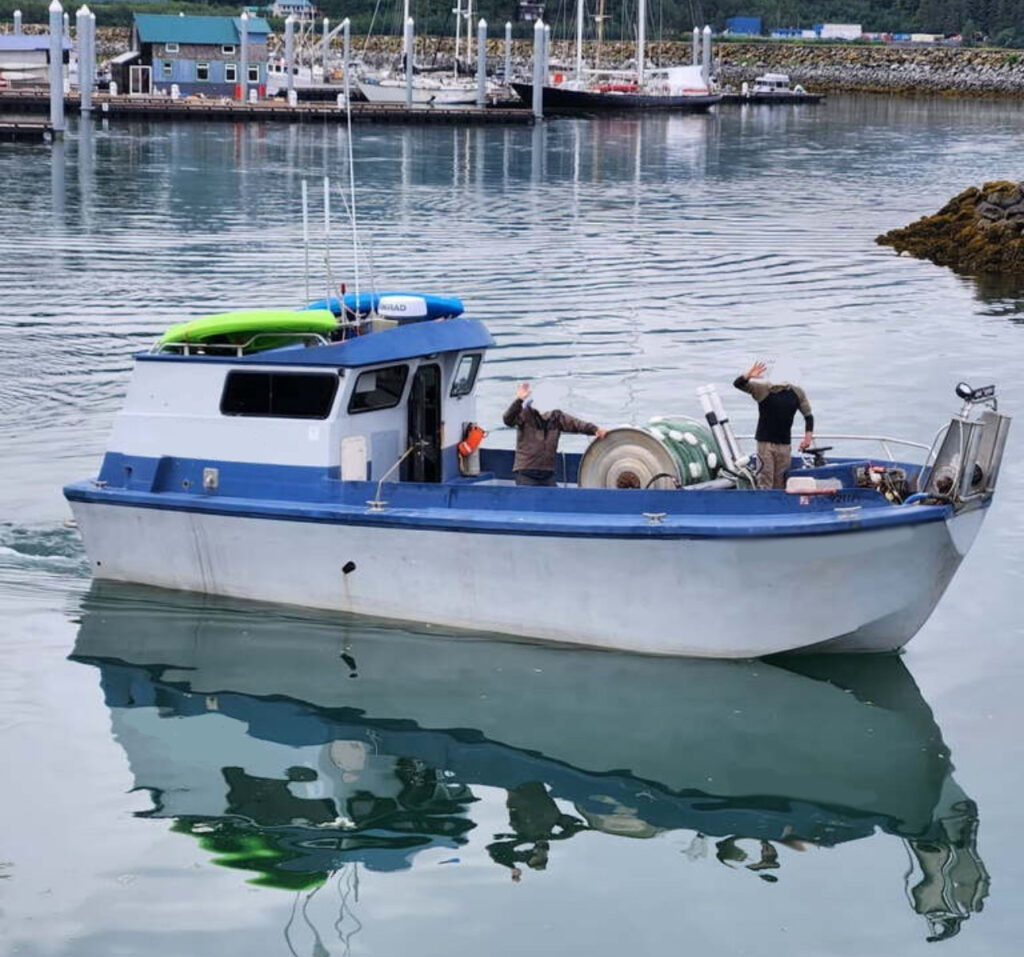

The captioned fishing vessel of bow picker configuration and is used primarily for salmon drift gillnetting on the Copper River Delta and Prince William Sound in South Central Alaska. The hull is of molded fiberglass construction and is a planing design with raked bow, slight v bottom, hard chine and square stern. The cabin is located aft and is constructed of structural foam board with fiberglass overlay. Access to the cabin is through a watertight hinged aluminum door on centerline forward. To port of centerline is a helmsman station with electronic array with refrigerator / freezer & storage under, then two burner LPG range with stowage under, then sink with hydraulic tank under. To starboard forward is the dinette with double facing bench seats with heaters and storage under, then additional heater, then additional upright full cabin height locker. At aft end of cabin athwartships are two stacked berths. Atop of cabin is a molded fiberglass hatch fitted to fiberglass raised combings for removal of propulsion engines. The engine room can be accessed by removal of the bottom berth or by raising one of three hatches found inset in the cabin sole forward of the bottom berth. The engine room contains propulsion engines, auxiliary engine, vessels batteries, sea water strainers, waterjet units, fuel filters, primary fuel tank, hydraulic pumps, and bilge pumps; all are well arranged. Found on the outboard side on the forward cabin bulkhead to starboard is a locker. Forward of the cabin is a flush deck with fish hold located amidships. The fish hold area is divided into three compartments by three longitudinal bulkheads and the fish hold area is covered by six molded fiberglass hatches fitted to raised fiberglass combings. The fish hold capacity is approximately 10,000 lbs. of salmon. Forward of the fish hold is a flush deck that is constructed of structural foam board with fiberglass overlay. Forward of the fish hold on centerline is a aluminum gillnet reel mounted on an aluminum frame with aluminum manual level wind, to starboard of gillnet reel is a fiberglass propane bottle, then to port forward is the second helmsman station with aluminum oval Freeman deck hatch aft for access below deck. Below deck a Rule 1100 GPH pump, 2” bronze thru hull with bronze ball valve, Pacer 2” pump with plastic housing for net wash and deck hose are found. The bow is fitted with a hydraulic bow roller and secured to transom are an aluminum pipe waterjet guard, trim plates, and waterjet nozzles.
GENERAL COMMENTS:
The vessel appears to be sound and watertight in its hull, decks, and cabin; and will be well suited for its intended service once vessel is un-winterized and
HULL & DECKS:
Hull material: molded fiberglass
Side thickness: ¾” +
Bottom thickness: ¾” +
Stringers: four 2” W x 8” H with fiberglass overlay
Bulkheads: two longitudinal & five transverse; all constructed of 1” structural foam board with fiberglass overlay
Shelves: molded fiberglass
Deck beams: 1” W x 4” H with fiberglass overlay
Decks: 1” structural foam board with fiberglass overlay
Bulwarks: 10 ½” H molded fiberglass
Other: 1” aluminum pipe hand rails in bow area secured to top of bulwarks in bow area, aluminum grating “jellyfish” sump found to outboard sides of fish hold hatch and inboard side of hull, oval aluminum Freeman deck hatch found aft of forward helmsman station, 2” aluminum pipe water jet guard
CABIN:
Material: 1” structural foam board with fiberglass overlay and gel coat finish
Location: aft end of vessel
Interior finish: 1” structural foam board with fiberglass overlay and gel coat finish, FRP overhead liner, pine trim
Ventilation: through cabin entry door and sliding side windows
Stove: two burner propane cooktop
Sink: single stainless steel (new 2018)
Berths: two stacked athwartships
Fresh water system: tanked & psi cold water only
Refrigerator / freezer: Norcold NR740BB (new 2019)
Head: none
Table: double facing bench seat to starboard side of centerline, seating for two
Helmsman’s station: port side of centerline
Other features: Red Dot, molded fiberglass hatch fitted to top of cabin, Dickinson Newport P9000 heater, 1” aluminum pipe hand rails atop of cabin and aft end of cabin, New Wave 3 Safety heater
PROPULSION MACHINERY:
Number of engines: two
Operating when examined (?): vessel on trailer at time of survey, according to owner yes
Make: Marine Power
Model: Port engine: J6.0V-NW / Starboard engine: J60VVTF
Type: V8, four cycle, electronic fuel injection, gasoline
Horse Power: 375 each (750 total)
Reported running time since Last Overhaul: Port engine: 2,861 hours / Starboard engine: 2,382 hours
Location: port and starboard of centerline under bottom berth
Exhaust: wet through transom
Cooling: heat exchanger
Reduction / reverse gear: 1:1 direct drive
Jet unit: Hamilton Jet model HJ 212 (serial numbers unable to identify)
Impeller(s): two stainless steel 3.4 kW turbo
Safety alarm system: high water temperature, low oil pressure, and low voltage
Other: two Perko bronze water strainers with 1” ports for water jets, inspection plate extensions for water jets, water jet bucket extensions, stomp rakes for water jets
AUXILIARY ENGINE NO. 1:
Make: Yanmar
Model: L100V
Horsepower: 10
Type: single cylinder, four cycle, diesel
Date installed: 2009
Cooling: air
Exhaust: dry
Location: under cabin sole to starboard forward of propulsion engine
Application: redundant hydraulics
CONTROL SYSTEMS:
Steering: two station; Sea Star HH5272 helm pumps
Clutch: two station; electric hydraulic by toggle switches to Parker Oildyne electric hydraulic
pumps for operating jet unit buckets
Throttle: two station; Morse control heads and Teleflex cables
Others: Bennett electric hydraulic trim plane system with custom aluminum trim tabs with dual plastic rams each and rocker switch at cabin helm station
ELECTRICAL SYSTEMS:
Type: 12 volt D.C. and 120 volt A.C.
Power source: D.C. off of propulsion engine alternators and A.C. off of Cobra CPI 550 1500 WATT invertor
Batteries: two 4D (house), three Group 32 (starting); all new 2019
Overload protection: two Perko battery isolator switches, Blue Seas circuit breaker panels; switches labeled and identified
Wiring and fixtures: insulated wire and fixtures shielded
Lights: all 12 volt LED
TANKING SYSTEMS:
Fuel tanks: one 300-gallon welded aluminum wrapped in fiberglass and grounded, secured under cabin sole and forward
Fuel lines: USCG ½” Type A1
Filters: two Parker/Racor S3232TUL and primaries for propulsion engines
Fuel vents: to outside atmosphere
Shut off valves: none
Fresh water tanks: one 13-gallon plastic (new 2018)
Lube oil tanks: none
Hydraulic oil tanks: one 3-gallon welded aluminum under counter aft of cabin helmsman station
Others: one Viking 3-gallon fiberglass LPG bottle, one 1 ½-gallon aluminum LPG bottle
PUMPING SYSTEMS:
Piping material: Rule plastic 1” and 1 1/8”, Bellowflex 2”
Sea cocks on all through hull fittings (?): one 2” bronze thru hull with 2” bronze ball valve under deck
Pumps: one Pacer 2” pump with plastic housing below deck, one Rule 1100 GPH pump below deck, two Rule 2000 GPH & two Rule 1100 GPH in fish hold area, two Rule 2000 GPH in engine room bilge (one on automatic float switch, one on manual switch), one 12V fresh water pump
AUXILIARY EQUIPMENT AND DECK MACHINERY:
Power take off: electromagnetic with v-belts and pulleys off of port propulsion engine, and direct drive off of auxiliary engine
Hydraulic pump(s): one Vickers 13 GPM off of port propulsion engine, one Vickers 7.5 GPM off of auxiliary engine
Anchor winch: none
Gillnet reel: 42” W x 44” H aluminum Kolstrand drum with KEM K-RD hydraulic gear and Kolstrand aluminum hydraulic manual level wind
Anchor and lines: 33 lb. Bruce with 20’ of ½” galvanized chain to 30’ of 3/8” galvanized chain and 100’ of 5/8” purseline
Other: Petrzelka Brothers, Inc. 26” W x 8” H hydraulic bow roller
RIGGING:
Other: custom aluminum stand atop of cabin for antennas, red fishing light, and white anchor light
ELECTRONIC AND NAVIGATION EQUIPMENT:
Radio SSB: none
Radio VHF: one Standard Horizon GX2000, one incorporated into GPS
Radio C.B.: none
Loran: none
GPS: one Standard Horizon CPV550 with built in VHF
Radar(s): none
Depth sounder(s): Garmin Striker 4 (new 2020)
Depth recorder: none
Sonar: none
Auto pilot: none
Compasses: 3” Ritchie magnetic at cabin helmsman station
Navigation lights: for class
SAFETY EQUIPMENT:
Fire extinguishers: one Kidde 3 lb. ABC near dinette, one Fireboy Halon in engine room
Personal flotation devices: one Type IV 24” life ring with 60’ of tether line attached
Survival suits: not on board at time of survey
Life rafts: none
Bilge alarm(s): automatic float switch with indicator light
Gas vapor detector(s): Xintex
Blower(s): two 3” Par electric
First aid equipment: Orion model WEK kit
Signal kit: four Orion red day / night hand held flares, one Orion manual air horn
Upgrades:
- Newly Installed Simrad Radar/Chartplotter/Depth Sounder (2025)
- Newly Installed 2500 Watt Power Inverter (2025)
- NEW Hydraulic Valve Unit (Reel, Levelwind, Pacer Pump)
- Engine Fuel Tanks Retrofitted with Shut-off Valve
PWS Salmon Drift PACKAGE Price: $185,000
Includes:
PWS Salmon Drift Permit
- Triple-Axle Trailer
- Two Additional 6.0L Marine Power Gas Engines (Running Take Outs)
- Three PWS Gillnets:
- 90 Mesh 4 7/8″ Sound Net (Mended)
- 60 Mesh 4 7/8″ Sound Net (Needs Mending)
- 60 Mesh 4 7/8″ Flats Net (Needs some mending and cork line splice at one end)
- One Additional KEM Drive
- One Spare Fiberglass Gillnet Reel
OR
Boat & Trailer Price: $105,000
