L.O.A. 44.7’
Tonnage: (G) 25 (N) 20
Vessel Type: Commercial, Fishing vessel rigged seining and tendering
Builder: Kachemak Welding
Builder Location: Homer, Alaska
Year Built: 1989
Survey Type: Condition & Value
GENERAL DESCRIPTION:

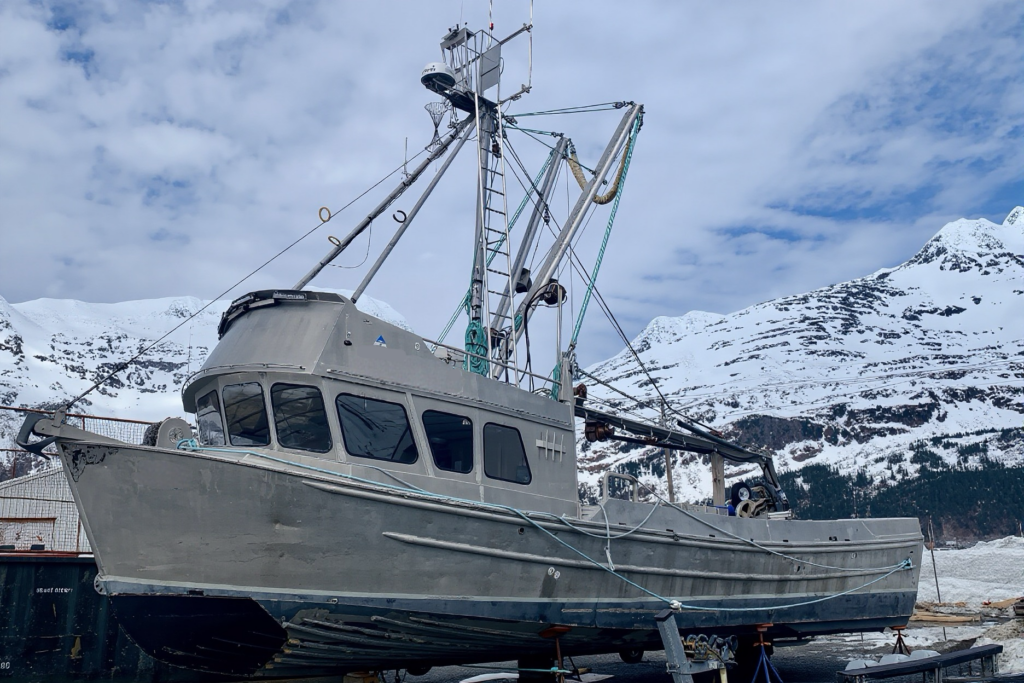

The fishing vessel is an Aluminum single screw diesel powered Fishing Vessel with a pilothouse forward. The vessel has a curved stem, hard chine, shallow keel, straight sides and a squared stern with a single tunnel. The Vessel is set up to seine, and tender and currently operates in Prince William Sound. The vessel has a pilothouse forward with entrance from the deck at midship through a watertight door. As you walk in the deck house the head is located on the starboard side, the galley and mess table are located on the port with galley against the back wall. The galley is complete with small oven and stove top, a small fridge and a sink with limited cabinet and countertop space. The forepeak at front the vessel is the main berthing area with (4) bunk style berths. The main steering station is located at starboard where controls, engine gauges and navigational equipment are located. Access to the flybridge is outside on vessels port side via ladder. On the Flybridge is located an additional helm forward, as well as a freezer, storage space, a life raft, potable water tank and access to the crows nest where a 3rd steering station is located. The engine room is accessed by an aluminum freeman hatch on deck at port side. In the engine room is located the main diesel engine, auxiliary engine, fuel lines, filters, all electrical wiring, various pumps and valves for RSW system. The work deck aft the vessel is where all fishing equipment is located, the deck is enclosed with a 12” high bulwarks w/ circular tube rail.
The deck winch is located midship with hydraulic controls located centerline at midship. Under the deck is located (1) fish holds, and the lazarette at stern. The fish hold is covered by an Aluminum Hatch midship having a 42,000 lb holding capacity.
HULL:
Year Built: 1989
Builder: Kachemak Welding
Registered Length: 44.7’
Width: 14.7’
Depth: 5.8’
Material: Welded Aluminum
Overall Hull Condition: Good
Cabin Style: Whaleback/Tophouse
Hull: 1/4” below waterline 3/16” steel above waterline 1/2” enforced around keel and underbody
Decks: 3/16” aluminum
Propeller(s): Stainless 4 blade
Shaft: 2” stainless steel w/ dripless seals
Rudder: 1/2” Steel
MACHINERY:
Model and Name of Main Engine(s): Cummings 6CTA
Horsepower: 430
Year Installed: 2012
Hours: 4,432.4
Main Engine Start: 12V DC Electric
Cooling: heat exchanged
Exhaust: Dry exhaust through transom
Fuel Filter(s): Racors
Ventilation: Natural
Marine Gear: ZF 305-2
Ratio: 1.68:1
Auxillary #1: Isuzu 25KW
Aux Start: 12 V DC electric
Hours: 15,5337.2
Cooling: Grid keel cooling
Fuel Filter(s): (1) Racor
Refrigeration System: IMS 15-ton w/ electric compressor a 3”x4” centrifugal driven by balder 5hp circulation pump w/ chiller tube located in engine room
Hydraulics: Main Hydraulic pump driven from main engine via electric clutch
Additional: Honda 2000 portable generator
LIGHTING AND ELECTRICAL:
Type of wiring: Marine
Voltage: 12 DC 110/208 AC
Batteries: (3) 12V 8-D batteries
Charging: Alternator & 20 Amp Guest pro chargers
Protection: AC/DC circuit breaker panels
Lights:
(4) 12 V LED Decklights,
(5) 20” LED forward facing, 12V cabin lighting, Navigational
Additional:
(2) Cobra 1500 Watt inverter
(2) 12V 8-D batteries,
(2) 6V house batteries
Kubota 40KW NEW 2021
(2) Racor
(4) 12 V LED Decklights,
(3) 20” LED Ridgid lights NEW, 12V cabin lighting, Navigational
Honda 2000 portable generator, New 12V oil changing pump
ZF 305-2 NEW 2021
DECK EQUIPMENT:
Anchor Make & Weight: 30 Kg Bruce
Chain: 60’ 1/2” galvanized chain
Cable: 150’ 5/8” double braided nylon
Winch: Kolstrand
Rigging:
(1) Aluminum 5 1/4” mast w/ 2 1/2” aluminum framing and crows nest atop,
4 1/2” main boom w/ full length stiffeners,
PL-5 topping winch, kinematics vanging winch,
Marco wheel block
(2) New 4 1/2” Aluminum
Picking booms w/ full length stiffeners
(2) P-L winches.
Deck winch w/ 16” hydraulic line coiler,
New 2/12” seine davit,
12” mooring cleats port & starboard
SAFETY EQUIPMENT:
Fire Extinguishers? Yes, (4)
Flare Kit? Yes,
First Aid Kit? Yes
Horn or Bell? Manual horn
Life Jackets? 4
Survival Suits? 4
Life Rings? yes
E.P.I.R.B.? (1) ACR Global Fix Pro
Life Raft? 4 person
Additional: Placards
FUEL & WATER TANKS:
Fuel Tank(s) & Locations: (2) in engine room 3/16” Aluminum NEW
Fuel Type: Diesel
Total Capacity: estimated 700 gal
Material: Welded Aluminum
Kolstrand deck winch NEW 2022
Shutoffs: yes @ manifold
Fuel Vent: extended fuel pipe w/ gooseneck ball valve @decks and lazarette
Fuel lines: Neoprene Hose
Hydraulic Tank(s): (1) 50 gal aluminum forward in engine room
Water Tank(s):(2) plastic 80 gal capacity total located beneath cabin sole & 50 gal potable tank
Additional: 12V DC water pump
ELECTRONICS & NAVIGATION:
Steering Stations: (3) Main @ Starboard helm, additional on flying bridge, and crows nest
Controls: Mathers Microcomanders Electronic
AutoPilot: Furuno Nav Pilot w/compass NEW
Steering: (2) Capilano Telflex hydraulic
Compass:
Ritchie 2 1/2”, Aquameter 3 1/2”
GPS/Plotter/Radar:
Garmin 5212,
(2)Garmin 4210, flying bridge and crows nest
Sat Phone:
Global Star Sat Phone
Radios:
(1) Icom IC M506
(1) Icom IC M504
Additional: Com Nav Rudder angle indicators, Stereo, Cellphone booster w/ antenna, Watch Alarm
Pumps Fire Hazards & Protection
Ventilation: natural
Bilge Pumps:(1) Rule 1500 auto submersible(engine room),
Additional Pumps: 1 1/2” Pacer wash down pump
Hydraulic Pump: Hydraulic pump & clutch on Main
Engine Alarms:
High Temperature,
Low lube oil,
low water level
(3) Rule 1500 auto submersible
(2) engine Room
(1) main cabin
Furuno Nav Pilot 711C w/260 Accu Steer
ACCOMMODATIONS:
The fishing vessel is a smaller seiner, the deck house has seating at the mess table and main helm. The Main berthing area is forward with 4 V berths in the forepeak. The vessel can comfortably Accommodate 4 persons. The vessel also is equipped with an Espar heater.
Recent Additions and Upgrades
2024 Body Web Replaced
2023 NEW Stuck Rib line,
2023 NEW Chafing Gear
2022 NEW Stuck Cork Line
-New 4 blade stainless steel propeller 2018
-New Fuel tanks w/ stainless steel finings and Racor filters 2018
-All new Stainless steel 6” dry exhaust system from main and auxiliary, existing at vessel stern 2018
-(2) New Picking Booms w/ Siff backs 2019
-New Navigational Equipment, including Micro Commanders controls, Furuno Autopilot, & VHF Radios 2019 & 2020
-New Plastic Water tanks 2018
-All new 8D batteries2018
-New seine Davit 2019
-New welded raised entrance and freeman hatch for engine room access 2018
-New Crows nest ladder
PACKAGE INCLUDES:
- Aluminum Outboard Skiff W/Trailer- 150 Yamaha Outboard Spare 150 Yamaha Outboard extra low hours on custom aluminum stand
- 2 1/2 Strip PWS purse seine net with rib line
- Pump for delivering diesel while Tendering.
- NEW Large Stuck Cork line for money bag with 24 corks
- 3-Strip of NEW Spectra Money Bag
- Bail of 18 Thread Web
- Bail of 21 Thread Web Spare Purse Line
PWS PACKAGE Price: $400,000 (No Permit)
OR
PWS PACKAGE & PWS Seine Permit Price: $520,000
